Products > Cured Products > Sleeves - Firesleeve Group
Firesleeve EndWrap Tape
Protecting and sealing the cut ends of firesleeve from wicking liquids and contaminants
FlameShieldรค End-Wrap Tape
This high temperature, heat and flame resistant silicone rubber end wrap tape is the perfect choice for sealing the ends of firesleeve, thereby preventing the firesleeve from wicking liquids such as water, oil or hydraulic fluid. This silicone tape can also be used to help secure other types of fiberglass and silica tapes over wires, cables, hoses, tube and pipe..
End wrap tape is available in Type I (rectangular profile) and Type II (triangular profile). Type II tape has a guideline colored stripe running down the centre as an aid to performing a standard 50% overlap when wrapping the tape around Sleeve, hoses and cables. Type II in .020" thickness and color oxide-red is the most popular style of end-wrap tape.
End-wrap silicone rubber tape is self bonding to itself and other silicone rubber sleeves and tapes, providing a waterproof/air tight end to the installation of firesleeve sleeve over hoses and cables.
End-wrap silicone rubber tape is self bonding to itself and other silicone rubber sleeves and tapes, providing a waterproof/air tight end to the installation of firesleeve sleeve over hoses and cables.

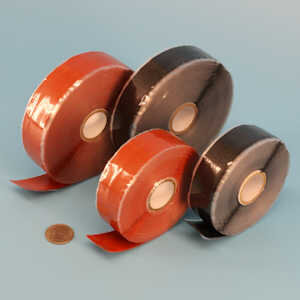

This tape is available in 1/2", 5/8", 3/4", 1", 1 1/2" & 2" widths (13, 16, 19, 25, 38, & 50 mm), with 36 feet / 12 yards / 36 feet / 10.9 metres of tape per roll. The tape is mounted on a backing film for easy unwinding. Firesleeve End Wrap Tape is available meeting specification A-A-59163 and MIL-I-46852.
It is not common to use the supported/reinforced version of this tape (specification MIL-I-22444) as an end wrap tape - however if that is required, then use the second cart link below instead of the first one.
To see a video on how to use this tape, use this link.
Firesleeve End Wrap Silicone Tape
Firesleeve End Seal Tape
To buy this product now on-line, use the shopping cart product selector below.
Any Problems?... Call 610-906-3549 during business hours for immediate help (press 1 for the Order Desk).
Silicone Rubber Self Fusing Tape
Self-bonding self-fusing silicone rubber tape. Meets A-A-59163 and MIL-I-46852.
Available in Type I (Rectangular) and Type II (Triangular) profile. Available in Black or Oxide-red color.
Available in Type I (Rectangular) and Type II (Triangular) profile. Available in Black or Oxide-red color.
$ 0.00
Add
MIL-I-22444 Electrical Insulating Tapes
Silicone Rubber Self Fusing Tape
Self-bonding self-fusing re-inforced limited stretch silicone rubber tape. Meets MIL-I-22444 specifications.
These tapes are all rectangular profile (Similar to a Type I in MIL-I-46852 specification). Most tapes are available in Black or Oxide-red color.
These tapes are all rectangular profile (Similar to a Type I in MIL-I-46852 specification). Most tapes are available in Black or Oxide-red color.
$ 0.00
Add
Silicone Rubber Self Fusing Tape
Add Certificate of Conformance and Test Reports if required to your order
$ 6.00
Add
Part Numbers:
End Seal Tape: T-SR-M013-08-RBK-20, T-SR-M013-08-RBK-30, T-SR-M013-08-ROR-30, T-SR-M016-10-RBK-20, T-SR-M019-12-ROR-10, T-SR-M019-12-RBK-20, T-SR-M025-16-TOR-20, T-SR-M025-16-TBK-20, T-SR-M025-16-ROR-20, T-SR-M025-16-RBK-20, T-SR-M025-16-TOR-30, T-SR-M025-16-TBK-30, T-SR-M025-16-ROR-30, T-SR-M025-16-RBK-30, T-SR-M025-16-TOR-40, T-SR-M025-16-TBK-40, T-SR-M025-16-ROR-40, T-SR-M025-16-RBK-40, T-SR-M038-24-ROR-20, T-SR-M038-24-RBK-20, T-SR-M038-24-ROR-12, T-SR-M038-24-RBK-12, T-SR-M051-32-ROR-20, T-SR-M051-32-RBK-20, T-SR-M051-32-TOR-20, T-SR-M051-32-TBK-20, T-SR-M051-32-ROR-30, T-SR-M051-32-RBK-30
