Products > Cured Products > Tapes: Thermal / Flame & Fire Protection
Silicone Rubber and Silicone Rubber Coated Fiberglass Tapes for Thermal Insulation - Prevention of heat loss or heat gain - Personnel burn Protection
Avaiable as:
- 500°F/260°C Silicone Rubber Sponge Foam Tape with PSA - FDA Food Contact
- 500°F/260°C Silicone Rubber Coated Fiberglass Knit Tapes

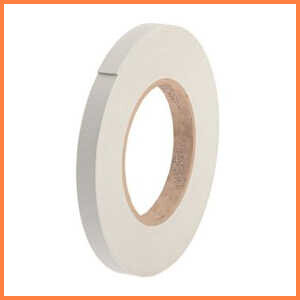

SilSeal Silicone Rubber Sponge Foam Tape PSA FDA Food Contact
500°F / 260°C Continuous Exposure: Higher Intermittent
SilSeal™ high temperature, heat & flame resistant silicone rubber sponge foam tape with PSA is FDA compliant for food contact.
Used as a gasket, cushion, vibration dampner and is thermally insulating. Can be used to wrap pipes, hoses and tubing to provide insulation or personnel contact protection against hot or cold.
Meets FDA 21 CFR 177.2600.
Available in 4 thicknesses: 1/16", 3/32", 1/8" and 3/16". Standard roll widths of 0.5", 0.75", 1.0", 1.25", 1.50", 2", 2.50", 3" and any custom width.
The silicone adhesive provides a high temperatue range up to 500°F. An acrylic adhesive version is rated to 325°F.
Surfaces should be cleaned with isopropyl alcohol prior to installation.

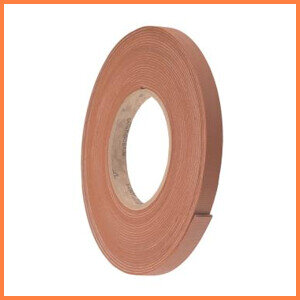

SilSeal Silicone Rubber Solid Tape with PSA
500°F / 260°C Continuous Exposure: Higher Intermittent
SilSeal™ high temperature, heat & flame resistant silicone rubber tape with PSA adhesive.
Used as a gasket, cushion, and vibration damper. Also used to wrap hoses, wires, cables to protect against weld spatter, molten liquid splash and grinding sparks.
Tape is 1/32", 0.031", 0.79 mm thick. Standard roll widths of 0.5", 0.75", 1.0", 1.25", 1.50", 2", 2.50", 3" and any custom width.
The silicone adhesive provides a high temperature range up to 500°F. An acrylic adhesive version is rated to 325°F.
Surfaces should be cleaned with isopropyl alcohol prior to installation.

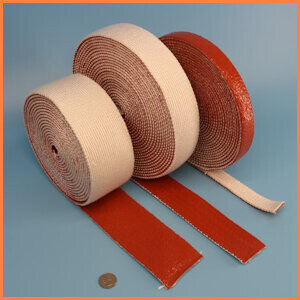

Silicone Rubber Coated Fiberglass Knit Tape - Premium Grade
500°F / 260°C Continuous Exposure: Higher Intermittent
Withstands Molten Splash & Welding Splatter/Grinding Sparks
FireTape™ high temperature, heat & flame resistant tape is similar to our firesleeve except it can be installed in situations where tubular firesleeve cannot be used, as when industrial hoses, wires and cables cannot be disconnected to install a sleeve. (our firesleeve with velcro closure is also an alternative).
This high temperature tape is the perfect choice for protection of industrial hydraulic hoses and lines, pneumatic lines, fuel & oil lines, brake lines, wires, cables, tube and pipe from exposure to high and extreme heat conditions. The extra thick special formulation of silicone rubber sheds molten metals, slag, welding splatter, electrical or grinding sparks and contamination. This tape also provides protection from ozone, UV and abrasion and provides thermal insulation.
Download PDF Catalog Page

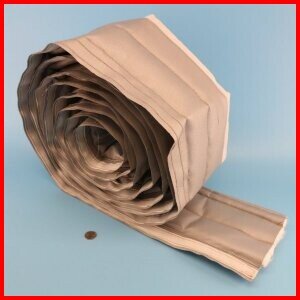

Insulated Tape Wrap for cables, hoses and tapes - heat trace insulation - energy savings - OSHA Personnel Burn Protection
500°F / 260°C Continuous Exposure: Higher Intermittent
Withstands Molten Splash & Welding Splatter/Grinding Sparks
Custom fabricated insulated wrapping tape for pipe, hose and line protection: high temperature protection and cold temperature protection. Excellent thermal protection and energy saving for boiler piping and steam pipe applications. Also provides thermal insulation and protection to flexible hoses and lines, and rigid lines and piping. Can be used to meet OSHA reuirements for personnel burn protection.
The outer cover is a 32oz/yd2 silicone rubber coated fiberglass. This outer fabric can also be supplied meeting NRC 1.36 specifications for use in nuclear facilities. The insulation layer and outer protection layer also meets MIL-I-24244 specifications.
The insulation layer is can be either 1/4", 1/2" or 3/4" thick fiberglass. The 3/4" thickness is a combination of 1/4" and 1/2" insulation layered and stitched.
An optional liner of PTFE coated fiberglass fabric provides additional protection of the insulation layer, especially useful if the tape will be removed and re-installed multiple times, or to prevent wear of the needled insulation and reducing the fibers from becoming free in the area of use. This insulated pipe and hose wrap tape is sewn with high temperature fiberglass thread.
A hook and loop fastener is added on the edges of the tape, allowing for easy closure and removal - allowing for easy inspection of the underlying hose, line or piping. The standard hook and loop is nylon; nomex and stainless steel closure versions are available.
May be installed longitudinally or spirally over pipes, hoses, wires and cables. Supplied in 20 foot lengths. May be cut in the field to shorter lengths.
